Equipment performance ①Efficient, automatic and reliable sorting; ②Completely independent dual-channel, 30 minutes to change.
Hotline：
0379-61292006

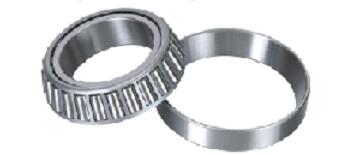

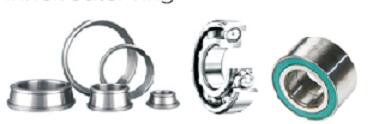

| Detection object | Inner and outer diameters of inner and outer rings of ball bearings, hub bearings and tapered bearings | Inner and outer groove diameter of inner and outer rings of clutch release bearing | Tapered roller bearing outer ring outer diameter and raceway sorting machine | Needle roller bearing bushing sorting machine | Needle roller bearing ring inspection machine |
|
|
|
|
|
|
| Equipment style |
|
|
|
|
|

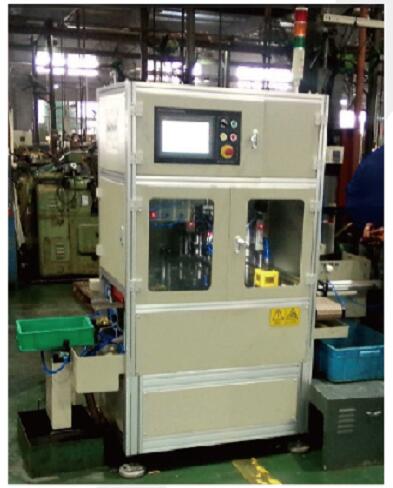

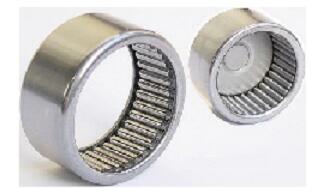

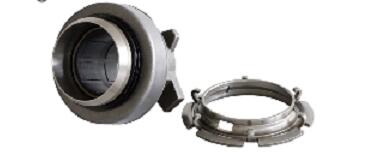

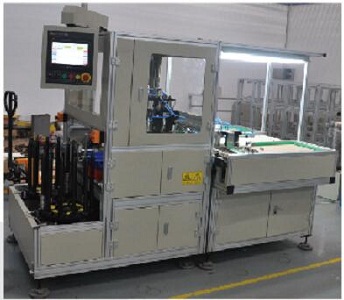

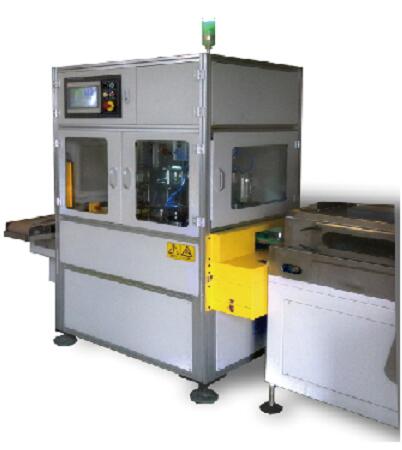

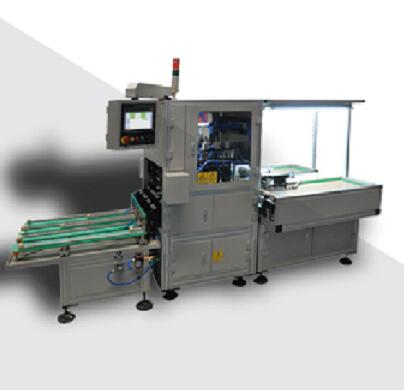

| device name | Small and medium bearing inner diameter/outer diameter sorting machine | Automotive clutch release bearing inner and outer ring groove diameter sorting machine | Medium-sized tapered roller bearing outer ring outer diameter outer raceway sorting machine | Needle roller bearing ring multi-parameter sorting machine | Needle roller bearing bushing multi-parameter sorting machine |
| Device model | AMdD 100 | AMDedi90 | AMDDe200-GGB | AMdD80 | AMdDH60 |
| Equipment use | Substitute labor for pre-installation inspection of bearings or final inspection of parts | ||||
| Measuring range | Outer outline of the measured object φ30mm-φ 100mm | Outer outline of the measured object φ20mm- φ70mm | Outer outline of the measured object φ90mm- φ200mm | Outer outline of the measured object φ40mm- φ80mm | Outer outline of the measured object φ20mm- φ60mm |
| Measurement parameters |
The average size deviation and taper of the inner diameter of the inner ring; Average dimensional deviation of outer ring outer diameter, taper |
Single size deviation of inner ring groove bottom; Single dimension deviation of outer ring groove bottom |
Average size deviation, ovality, taper of outer ring outer diameter; Outer raceway single - - dimensional deviation, angle |
Single outer diameter - section size deviation; Dimensional deviation, taper, ovality of inner diameter of two sections |
The average size deviation and taper of the two sections of the outer diameter; The average size deviation of the two truncated inner diameters, taper; Dimensional deviation of single point of total bushing height and raceway height |
| Measurement principle | comparative measurement | ||||
| measurement method | gas measurement | Gas measurement + electrical measurement | Electrical measurement | gas measurement | Gas measurement + electrical measurement |
| measurement accuracy | 0.5μm | 1μm | 1.5μm | 2μm |
Inner and outer diameter 1 μm, height 5 μm |
| work beat | 5S/2piece | 7S/2piece | 10S/piece(measure ovality) | 12S/2piece | 10S/piece |
| self-calibration | Zero self-calibration according to the set time or cycle | ||||
| SPC function |
According to the SPC process control theory, it analyzes the measurement data and provides XbarR control chart and Cp, Cpk, Pp, Ppk, Cmk and other-series process control parameters, and counts the total number, the number of qualified products, the number of repaired products, and the number of rejected products. |
||||
| Device performance overview |
①Efficient, automatic and reliable sorting; ②Completely independent dual-channel, 30 minutes to change. |
①Efficient, automatic and reliable sorting; ②Completely independent dual-channel, 30 minutes to change. |
①Efficient, automatic and reliable sorting; ② 30 minutes to change the model. |
①Efficient, automatic and reliable sorting; ②Completely independent dual-channel, 30 minutes to change. |
①Efficient, automatic and reliable sorting; ② 30 minutes to change the model. |
