Technical FeaturesHigh reliability, labor replacement, high cost performance
Hotline：
0379-61292006

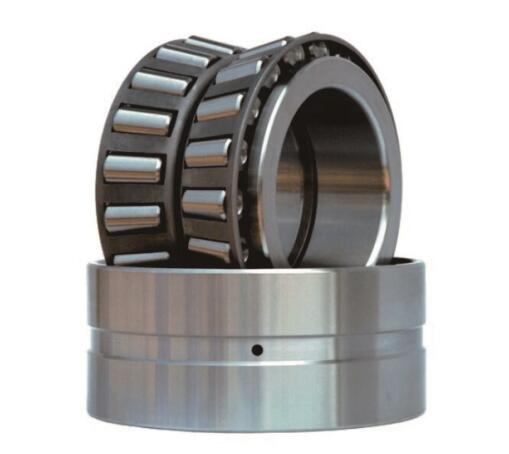

| Detection object | railway bearings | |
|
||
| Device style |
|
|

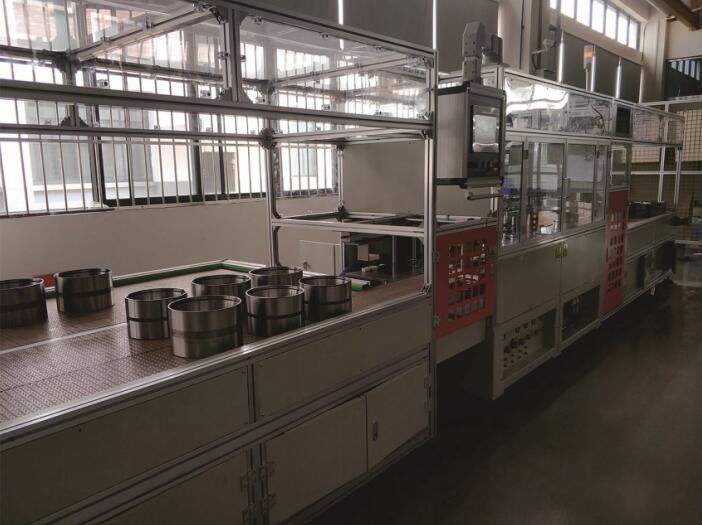

| device name | Railway bearing outer ring testing machine | Railway bearing inner ring testing machine |
| Device model | AM-OR302 | AM-IR250 |
| Measuring range |
Outer diameter of outer ring: Φ195mm-Φ302mm; Width: 143- 197mm, weight ≤ 26kg; Two measuring positions of the raceway, the unilateral span L≤18.115mm; the minor diameter d≥162.94mm; The distance between the rib and the small diameter L1≤25.119mm. |
Inner diameter of inner ring: Φ120mm-Φ165mm Inner ring outer diameter: Φ170mm-Φ220mm Width: 60- 100mm, weight < 10kg; The two measuring positions of the raceway have a unilateral span L< 8mm; |
| Measurement parameters |
1. The width of the outer ring, the parallel difference of the outer ring; 2. Outer ring raceway size, outer ring raceway ovality, outer ring raceway angle, outer ring raceway vertical difference; outer ring upper and lower raceway coaxiality, outer ring raceway wall thickness difference; 3. The average size of the outer diameter of the outer ring, the ovality of the outer diameter, the taper of the outer diameter, and the vertical difference of the outer diameter; 4. The average inner diameter of the tooth opening, the ovality of the outer ring tooth opening, and the wall thickness difference of the tooth opening; 5. Outer ring temperature; 6. Digital code reading. |
1. The width of the inner ring, the parallel difference of the inner ring; 2. Inner ring raceway size, inner ring raceway ovality, outer ring raceway angle, inner ring raceway vertical difference; inner ring raceway wall thickness difference; 3. Inner ring rib width size; inner ring rib angle; inner ring rib parallel difference; 4. The average size of the inner diameter of the inner ring, the ovality of the inner diameter, the taper of the inner diameter, and the vertical difference of the inner diameter; 5. The outer diameter of the inner ring large rib, the ovality of the outer diameter of the inner ring large rib, and the wall thickness difference of the rib; 6. Inner ring temperature; 7. QR code reading. |
| Measurement principle | Comparing measuring principles | |
| measurement method | Electrical measurement | |
| measurement accuracy | 1-2 μm | |
| work beat | ≤60s | ≤45s |
| self-calibration | Zero self-calibration correction according to set time or cycle | |
| sorting | The workpieces with unqualified size are rejected to the NG silo, and the qualified products are discharged to the next process. | |
| Technical Features | High reliability, replacement of labor, high cost performance | |
