Ball cage sorting machine

The ball cage is an important part of the automobile transmission system. Its function is mainly to transmit the power of the engine from the transmission to the two front wheels to drive the car at high speed. The ball cage is divided into an inner ball cage and an outer ball cage. The inner ball cage is the part connecting the gearbox differential, and the function of the outer ball cage is power output. The ball cage sorting machine is used for pre-loading and sorting of ball cages through equipment instead of manual work. Screening different sizes of ball cages, and remove some ball cages that do not meet the standard.

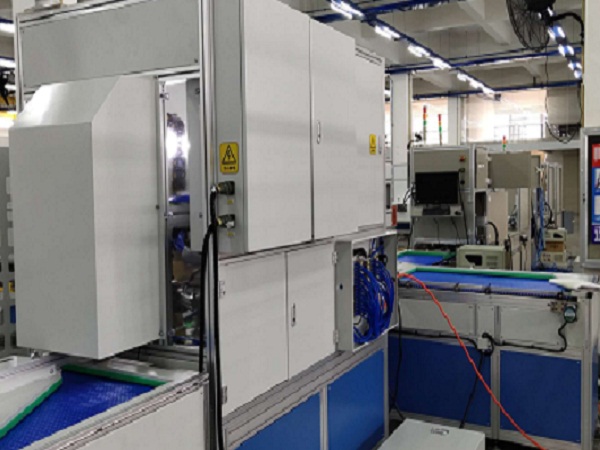

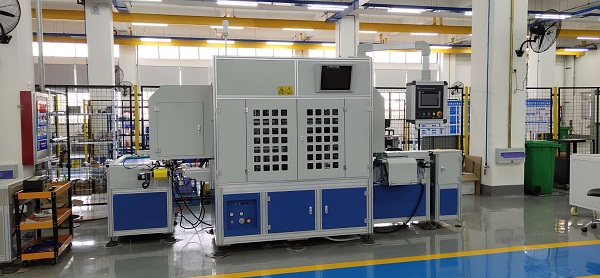

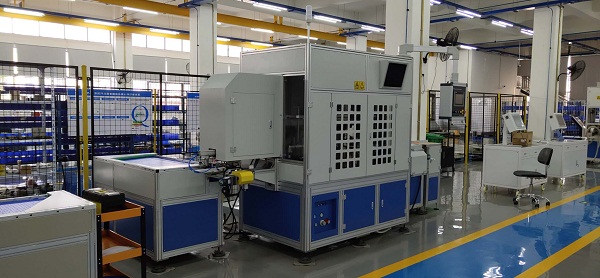

The ball cage sorting machine adopts a dual-channel layout, and the main machine adopts a four-axis robot for loading and unloading; the cage is manually placed on the feeding chain plate, and the cage reaches the feeding position along the chain plate (there is a material distribution device on the chain plate). , to ensure that the materials come one by one; the first line of material sorting and material NG product rejection before reaching the loading position (NG product rejection is guaranteed to be able to store 20 materials); The four-axis robot grabs the cages of the two material channels respectively Go to the corresponding measurement station for measurement; the robot grabs the qualified product to the discharge chain plate, and the NG product grabs into the NG product bin.
