Automobile release bearing test equipment

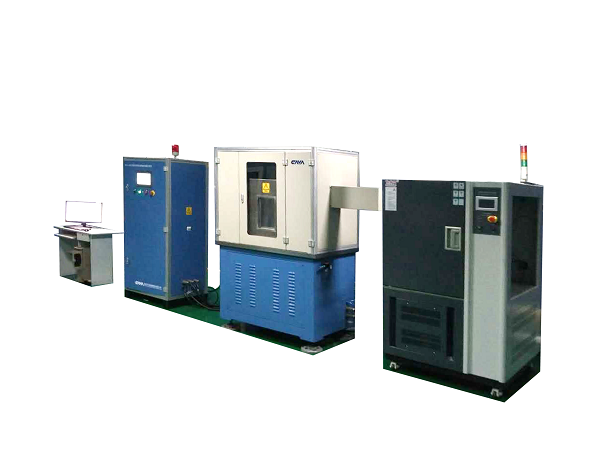

TAC30-50nT Automobile clutch release bearing simulation test machine
The testing machine simulates the actual working condition of the automobile clutch release bearing combined with the diaphragm spring, and uses a mechanical method to make the release bearing clutch according to the required clutch frequency and separation stroke under a certain ambient temperature, so as to evaluate the work of the clutch bearing. life.

Automobile clutch release bearing simulation test machine
Equipment model: SYJ-LHQ
Test range: various types of automobile clutch release bearings
Equipment use: simulate the running state of the clutch release bearing of the automobile, and carry out long-term performance and life tests under repeated clutching, loading, eccentricity and other states.
Technical indicators
●Rotation speed 12000rpm
●Clutch frequency 3HZ
●Separation stroke 0---30mm
●Cylinder loading
High temperature, waterproof simulation test
Failure judgment: with bearing vibration, temperature, motor current, and load overrun, the testing machine automatically stops and alarms
Technical Features
●Full simulation environment
●Advanced failure discrimination mode
