Technical Features ● Innovative design with high intelligence, high reliability and high flexibility; ●High flexibility design, quick type change; ●Real-time statistics of equipment status, quality data, production scheduling, etc. of the entire production line; ●More friendly ergonomic design.
Hotline：
0379-61292006
High-end large-size ball bearing assembly line
Measuring range: deep groove ball bearing
Inner Ring: Inner Diameter: Medium 65-Medium 100mm; Outer Diameter (Dk): 85- 125mm; Width: 28- 45mm;
Outer ring: Outer diameter: φ 140-middle 200mm; width: 28- 45mm; greased, marked and oiled
Equipment details:
1. Outer space and inner map dual-channel cleaning machine;
2. Outer ring outer diameter outer ring groove diameter/inner ring inner diameter inner ring groove diameter double-channel detector;
3. Outer ring/inner grouping machine;
4. Pairing and ball loading machine;
5. Cage assembly and riveting machine;
6. Automatic grease pressure dust cover equipment;
7. Finished bearing cleaning machine;
8. Laser marking and defect detection machine;
9. Finished bearing oiler;
10. Automatic vibration detection machine;
11. Clearance detector.
Technical features:
●Innovative design of high intelligence, high reliability and high flexibility;
●High flexibility design, quick type change;
●Innovative design of high intelligence, high reliability and high flexibility;
●More friendly ergonomic design.

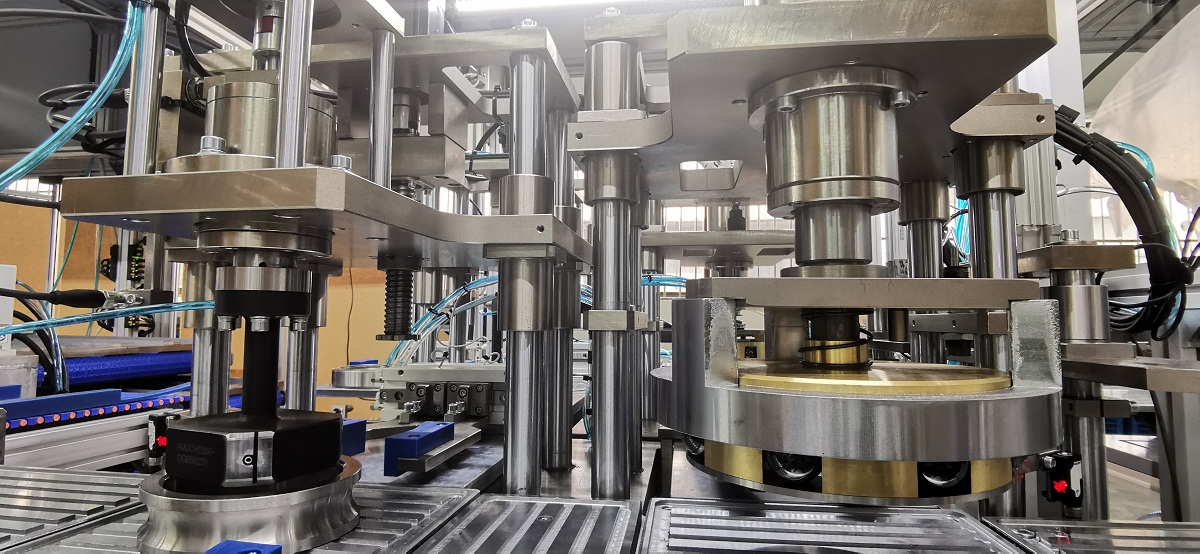

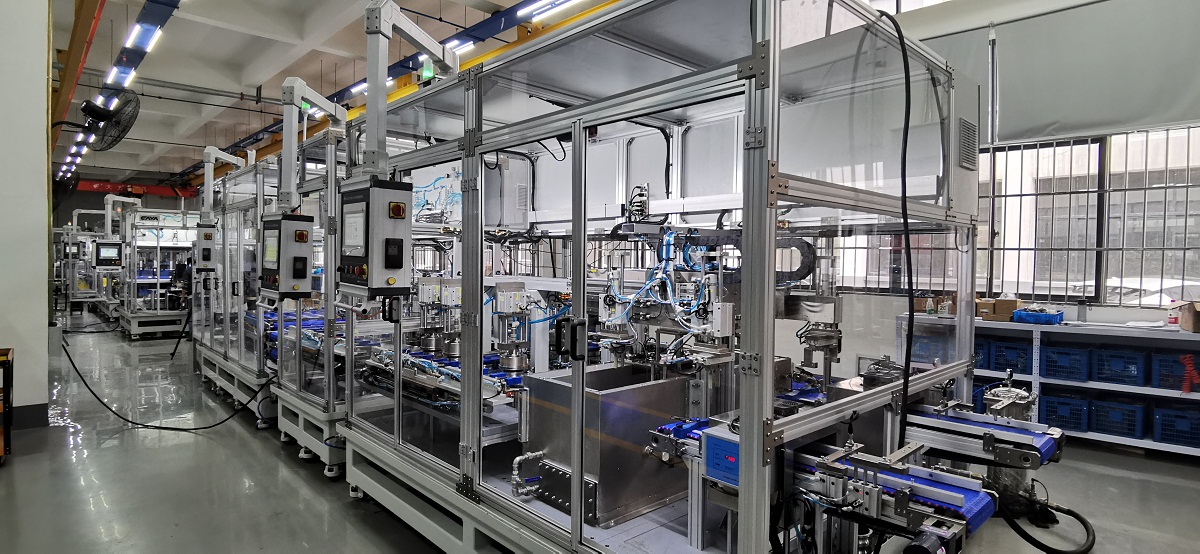

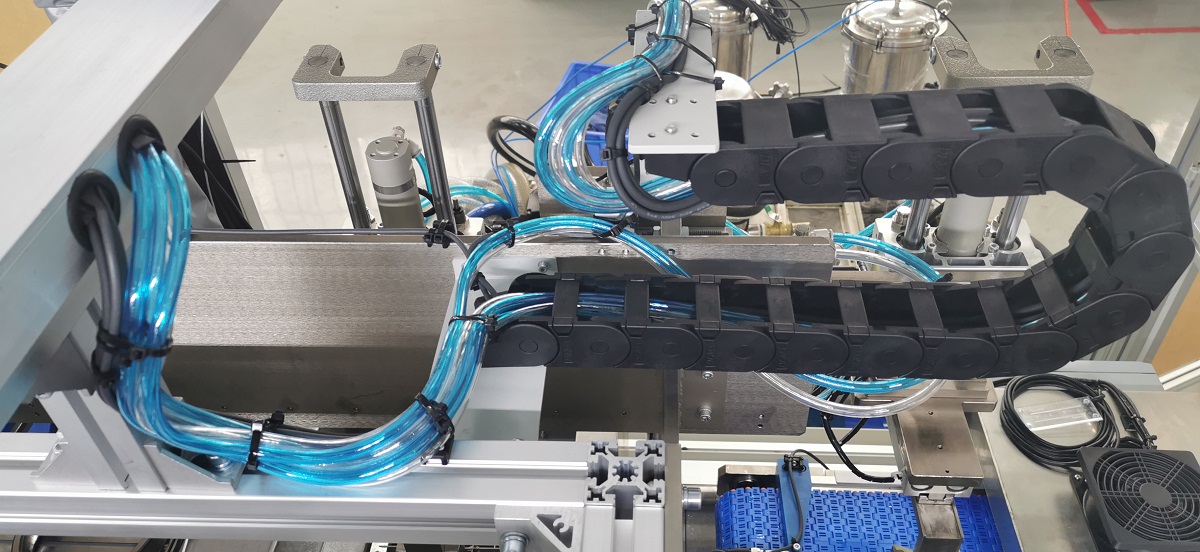

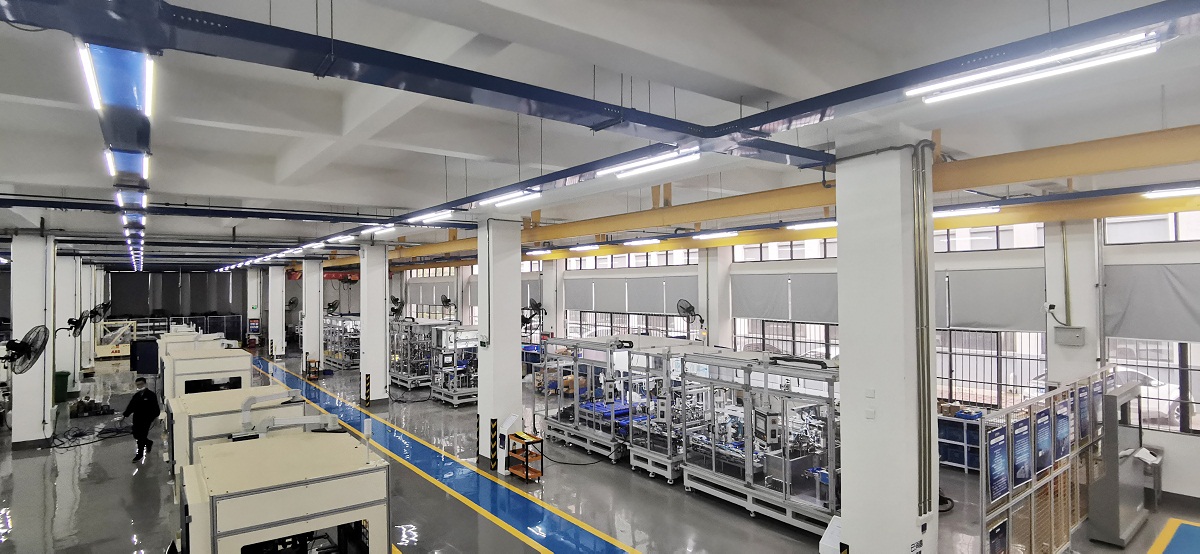

Product image presentation:
