Ultra-high-speed bearing testing machine

2022-04-14 14:46:26

Product introductionUltra-high-speed bearing testing machine is used to verify the supporting components of the aviation system. Extremely harsh working conditions such as high temperature and heavy load put forward higher requirements for the performance of rolling bearings. It can accurately evaluate bearing performance and improve bearing structure design to provide reliable test data. The limit speed can reach 120000rpm.

Hotline：

0379-61292006

Online

Detailed

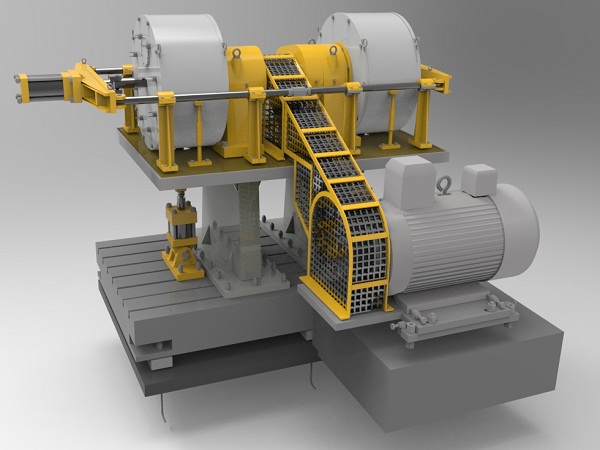

Ultra-high-speed bearing testing machine

The ultra-high-speed bearing testing machine is also a high-speed railway bearing testing machine. It is mainly used for the simulation experiment and high-speed performance test of railway car material hub bearings. Extremely harsh working conditions such as high temperature and heavy load put forward higher requirements for the performance of rolling bearings. It can accurately evaluate the bearing performance and improve the bearing structure design to provide reliable test data, and the limit speed can reach 120000rpm.
The ultra-high-speed bearing testing machine adopts industrial control computer and hydraulic servo control technology to automatically measure and control the testing machine, simulate the working conditions such as the load spectrum, speed spectrum and impact load of the train, including the airflow cooling of the train running in the wind, etc., to test durability. and performance tests. The test speed can be as high as 400 kilometers per hour. The test runs automatically according to the set program, and the screen displays the test parameters and curves in real time. When the test bearing fails, it can automatically alarm and stop, and record and print the reason for the shutdown.
